Benefits

• Excellent wetting reflow in air

• Probe-testable residue

• Extended open time

• Consistent fine-pitch printing

• Strong initial tack strength and long-term stability

• High humidity resistance

• Halogen-free

Introduction

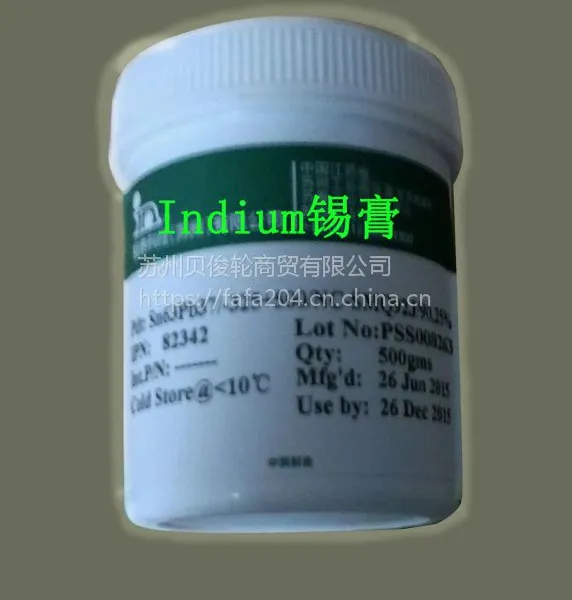

Indium NC-SMQ®92J is a halogen-free, air reflow, no-clean solder paste formulated to leave a benign, probe-testable residue. The residue is easily penetrated and will not clog multi-point probes. This product has other qualities such as consistent fine-pitch paste deposition, unsurpassed stencil life and tack time, and excellent wetting. NC-SMQ92J will perform well on high speed surface mount lines utilizing fast print speeds and rapid chip placement. NC-SMQ92J meets or surpasses all ANSI/J-STD-004, -005 specifications and Bellcore test criteria.
